SimONet platform
SimONet (Simply On Network) is a modern software platform that enables the collection of data from technological processes and devices in locations where standard communication networks are unavailable or inefficient.
It provides comprehensive monitoring of electrical and non‑electrical parameters. Importantly, this method of data acquisition can be applied even to existing ZAT products. The technical solution is based on an IoT platform, using predominantly battery-powered low-energy sensors.
Following the sensor layer, data are stored in the database and visualized via the SimONet platform, which is designed both for user-facing presentation and for service/backend use. The user interface presents information to clients, while the service side handles device configuration and operation monitoring by the service provider.
Try SimONet for Yourself
SimONet is a web application—you can try the demo by simply creating a demo account. There is no need to download or install anything, nor to enter a credit card. Access to the demo is free, with a 10‑day validity period. After this, extension can be requested if needed.
Within the demo, you'll find sample applications to explore how intuitive SimONet is and how customizable its visual interface can be.
Data Collection
The data collection system is designed to acquire information on measured physical quantities using both our proprietary and third-party sensors. It also supports easy integration of existing sensors via an IoT converter, allowing for quick and non-invasive installation without the need for complex interventions in existing infrastructure. Thanks to wireless communication and battery power options, it offers maximum flexibility for device placement, even in hard-to-reach locations. SimONet supports a wide range of sensors and enables gradual system expansion based on the customer’s current needs.
Transmission Layer
Sensor data is transmitted to the central system using modern networks optimized for industrial IoT. We utilize LPWAN technologies with low power consumption and long range – Sigfox, NB-IoT (Vodafone), and LoRa networks of our partners (ČRA, Plzenec Net, Starnet). For independent operation, we also offer our own LoRa ZAT network tailored to specific deployment conditions – for example, in areas without public coverage. Where needed, we use traditional WAN or mobile LTE connectivity. This flexibility allows us to always design a customized transmission solution – reliable, efficient, and operationally accessible.
Data Warehouse
Data processing is handled by the backend of the application, which operates in the background and is not directly visible to the user. Its primary function is to store data in a database for further processing and use. It also aggregates incoming data from various sources and prepares it for subsequent operations. The system manages data queues to ensure smooth and efficient processing. It performs calculations and analyses on stored or incoming data. Data sources can include both your internal systems and data from our SandRA platform. The processed data is then made available to other SimONet modules or third-party tools.

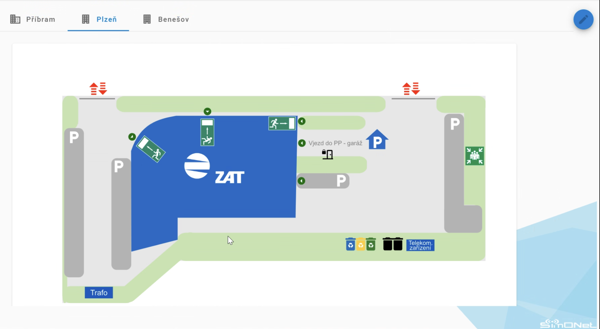

Information Visualization
Advanced visualization platform enables the display of both real-time and historical data in technical and managerial dashboards. It supports in-depth analysis with respect to external factors and offers advanced features such as filtering, data export to common formats, map views of measurement points, GPS records, fault and maintenance logs, and management of user accounts and access rights. The platform is customizable to meet specific customer requirements and provides a unified, accessible data environment across the organization. Its intuitive interface ensures ease of use. SimONet is a powerful tool for efficient data management and evaluation across various sectors and operations, offering remote access via web technologies, including on mobile devices.
Service and Device Monitoring
SimONet Service is designed for clear management and monitoring of device status within the system. The interface allows users to configure connected end sensors and customize the user environment according to their needs. It also processes and visualizes service information such as communication status, battery level, and other technical parameters. The application transfers data to the SimONet Visualization system, enabling effective evaluation of individual device status. Thanks to its intuitive interface, the overall system management is clear and user-friendly.
Platform Benefits
-
Simple to use
-
All data in one place
-
Tailored solutions
-
Flexible services
-
Access from anywhere
-
Easy integration
-
Data security
-
Cost savings
-
Expert support
Deployment Options
SimONet as a Service
In this model, the platform is provided as a service (SaaS) and hosted in a professional data center located in the Czech Republic. Customers gain instant access to the system without the need to purchase their own servers or handle maintenance, updates, or administration — everything is managed by the service provider. Thanks to high-level security, availability, flexible scalability based on current needs, and low initial costs, this option is ideal for companies looking to adopt a modern IoT solution without investing in their own IT infrastructure.
SimONet on premise
This deployment model involves installing and operating SimONet directly on the customer’s own servers within their internal IT infrastructure. It provides full control over all data, which remains securely stored within the organization. The system can be easily integrated with existing solutions such as ERP, SCADA, or other corporate applications. Customers define their own security standards, can run the system offline, and optimize performance based on operational demands. This option is ideal for organizations that prioritize maximum security, autonomy, and integration with in-house processes.
Use Cases for the SimONet Platform
Sensors monitor temperature, humidity, CO₂ levels, noise, energy consumption (electricity, gas, water, heat). The data enables automated control of HVAC systems and digital meter readings—resulting in energy savings, increased comfort, clear oversight.
Smart Building Management
Battery-powered sensors remotely track pressure, temperature, leaks, and system states across utility networks. This enhances safety, saves costs, and provides visibility even for remote infrastructure sections.
Distribution Network Monitoring
Wireless sensors monitor movement, routes, vibrations, and zone breaches. With battery operation and easy installation, valuable data can be collected without complex infrastructure. Ideal for logistics and industrial applications.
Location Tracking
A battery-powered sensor system provides early warnings of potential landslides. It sends alerts including photo documentation. Suitable for railways, roads, and trails—helping protect property and lives.
Landslide Detection
A wireless module certified for Zone 2 environments enables data collection in areas at risk of explosion. No cabling is needed, and the module is easy to install. It identifies faults and enhances both safety and operational efficiency.
Zone 2 Monitoring (Explosion-Prone Environments)
Continuous, non-camera-based monitoring of the environment and patient movement. Tracks temperature, CO₂, noise levels, and position—detects falls and incidents. Boosts safety, improves care, and reduces operating costs in medical institutions.
